PLC - Programmable Logic Controller

Image Model Specification Application DataSheet

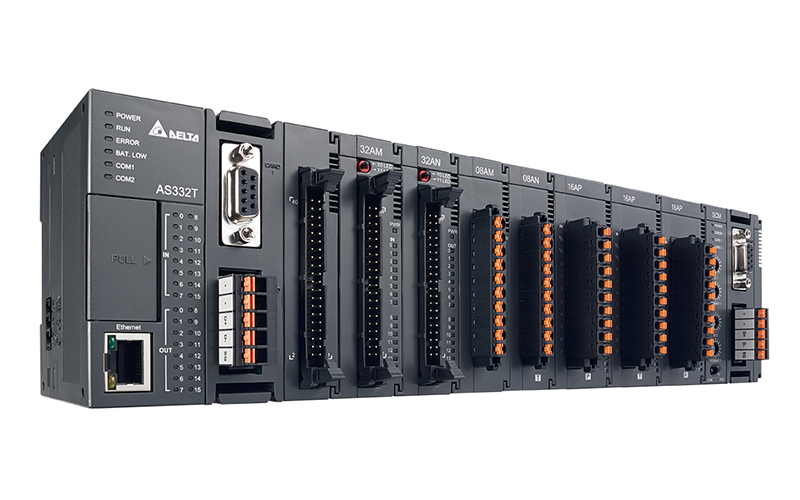

Delta COMPACT MODULAR MID-RANGE PLC – AS
  • Max. I/O : 1,024 points
  • Program capacity : 128k steps
  • Data register : 60k words
  • Max. extension ability : 32 modules
  • 32-bit SoC (System on Chip) CPU for high performance and high-speed computing CPU with built-in RS-485 port*2 Mini USB Port, Ethernet port, and Micro SD card slot Max, 8 axes control via CAN open motion network
    		•  Various modules for Selection : Digital I/O modules, analog I/O modules, load cell modules, temprature measurement modules, serial communication modules, industrial bus modules Download

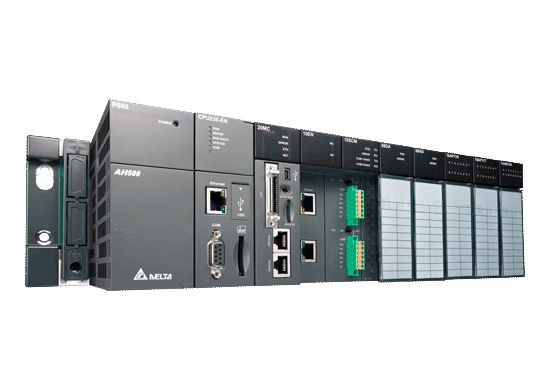

    delta HIGH PERFORMANCE MID-RANGE PLC AH500
  • 32 bit dual-core multitasking processor
  • Excellent program excution speed : 0.3 ms / 1k steps
  • Max. I/O
  • DIO : Max. 4,352 points
  • AIO : Max. 54 channels
  • RIO : Max, 125,440 digital points / 3920 analog channels
  • Program capacity : Max. 384k steps (1.5 MB)
  • Data Register (D+L) : 256k words
  • CPU with built-in fully isolated RS-232 / 422 /485 ports.
    		•  The AH500 supports excellent motion control functions including 3-axis linear interpolation, 2-axis arc interpolation, and 3-axis helical interpolation. In addition, the AH500 is capable of controlling up to 12 axes or 4 groups of 3-axis interpolation synchronously at 1ms through Delta's high speed DMCNET motion control network. The AH500 satisfies requirements for complex processing or precise motion control and is effective for applications such as building material processors, warp knitting machines and food packaging machines.

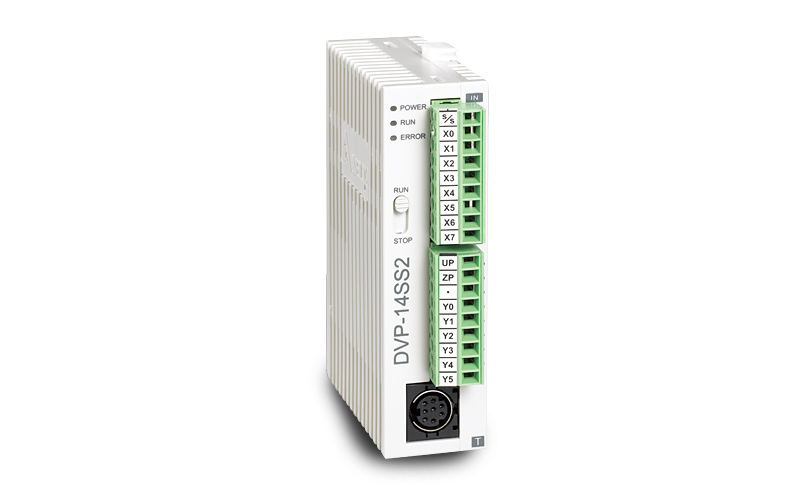

    delta 2nd GENERATION STANDARD SLIM PLC DVP - SS2
  • MPU points: 14 (8DI + 6DO)
  • Max. I/O points: 494 (14 + 480)
  • Program capacity: 8k steps
  • COM port: Built-in RS-232 & RS-485 ports, compatible with Modbus ASCII/RTU protocol. Can be master or slave.
  • High-Speed Pulse OutputSupports 4 points (Y0 ~ Y3) of independent high-speed (max. 10kHz) pulse output
  • Supports PID Auto-tuningDVP-SS2 saves parameters automatically after the PID auto temperature tuning is completed.
  • Built-in High-Speed Counters
    		•  Spinning machine, conveyer belt (rotation speed control), winding machine (tension control)

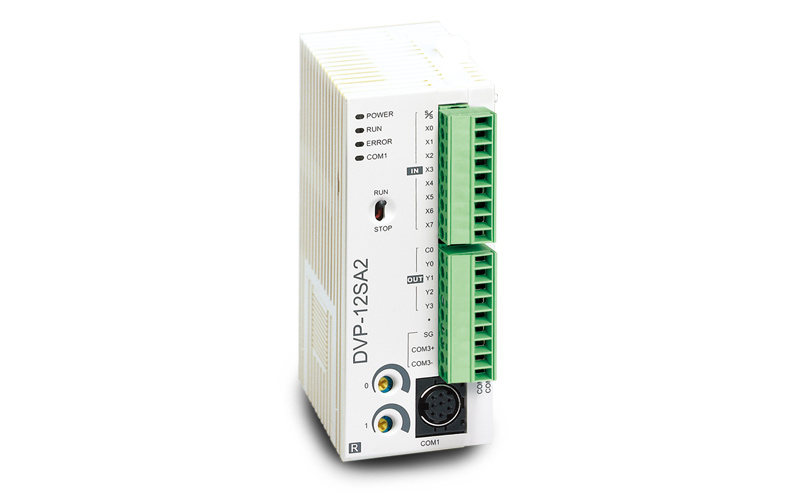

    delta DVP - SA2 Series
  • MPU points: 12 (8DI + 4DO)
  • Max. I/O points: 492 (12 + 480)
  • Program capacity: 16k steps
  • COM port: Built-in RS-232 & 2 RS-485 ports, compatible with Modbus ASCII/RTU protocol.
  • High-Speed Pulse Output: Supports 2 points (Y0, Y2) of 100kHz and 2 points (Y1, Y3) of 10kHz independent high-speed pulse output.
  • Extendable to Max. 8 Modules: DVP-SA2 is extendable to analog I/O, temperature measurement, input DIP switch, PROFIBUS/DeviceNet communication modules and single-axis motion control functions
    		•  Built-in High-Speed Counters. Printing machine, dying machine, container filler (for prescription’s), work station monitoring in production line (PLC EASY LINK)

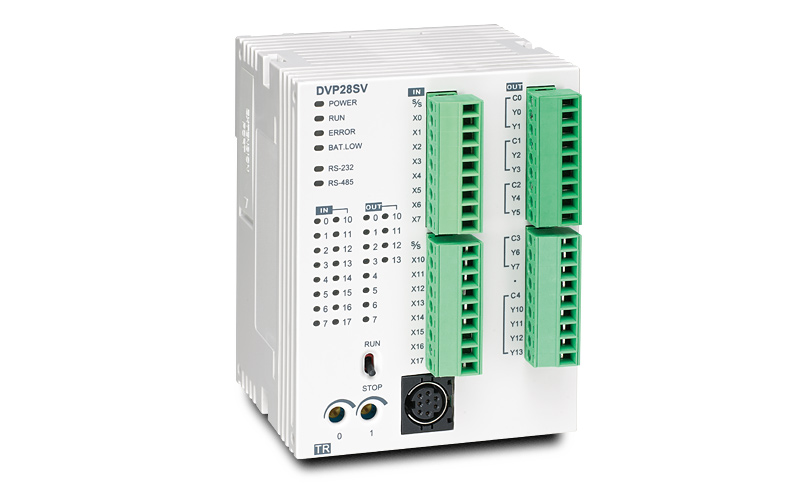

    delta DVP - SV2 Series
  • High-speed pulse output: 4 sets of 200kHz pulse output
  • Supports max. 4 hardware 200kHz high-speed counters
  • Increases many motion control instructions to meet the applications that require high-speed and high-precision positioning
  • Offers linear / arc interpolation motion control
  • Provides up to 16 external interrupt pointers
    		•  2-axis servo positioning control, material cutting machine (high-speed servo control), main hoist of crane, material clip controlled by servo, equipments in the optoelectronics industry, semiconductor industry, textile industry, energy saving activities and automation in buildings.
    delta DVP - ES2 Series
  • MPU points: 16 / 20 / 24 / 32 / 40 / 60
  • Program capacity: 16k steps
  • Built-in with 3 COM ports: 1 RS-232 port and 2 RS-485 ports, all are able to operate independently (Master/Slave)
  • Max. I/O points: 256 input points + 16 output points, or 256 output points + 16 input points
  • DVP-EX2 MPU is built in with 12-bit 4AD/2DA and offers analog/temperature modules of 14-bit resolution.
  • Built-in with 8 high-speed input points (2 points for 100kHz, 6 points for 10kHz) and supports U/D, U/D Dir, A/B counting modes
    		•  HVAC, molding injection machine, big storage management, packaging machine, precise textile machine, logistic system.

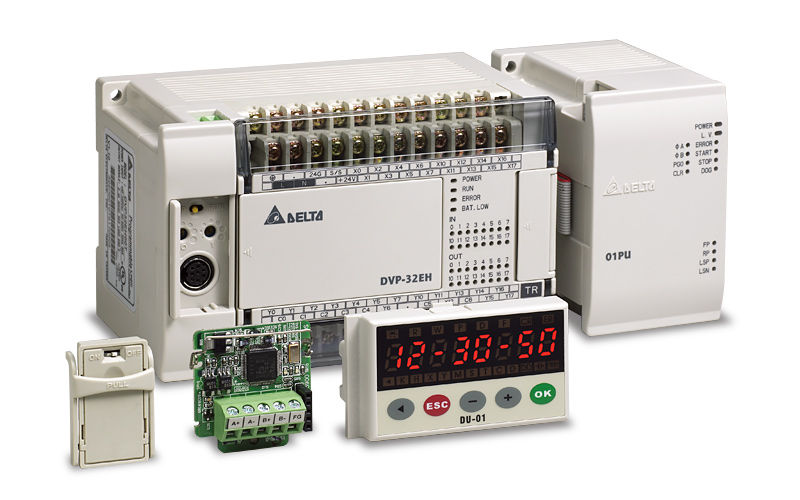

    delta DVP - EH3 Series
  • High-speed pulse output: 4 sets of 200kHz pulse output (DVP40/48/64/80EH00T3)
  • Supports max. 4 hardware 200kHz high-speed counters
  • Increases many motion control instructions to meet the applications that require high-speed and high-precision
  • positioning control such as labeling machines, packaging machines and printing machines
  • Offers linear / arc interpolation motion control
  • Provides up to 16 external interrupt pointers
    		•  High-speed 3-axis servo welding machine, high-speed cutting machine, bar feeder, distributed monitor system in production line.

    HMI - Human Machine Interface

    Image Model Specification Application Datasheet

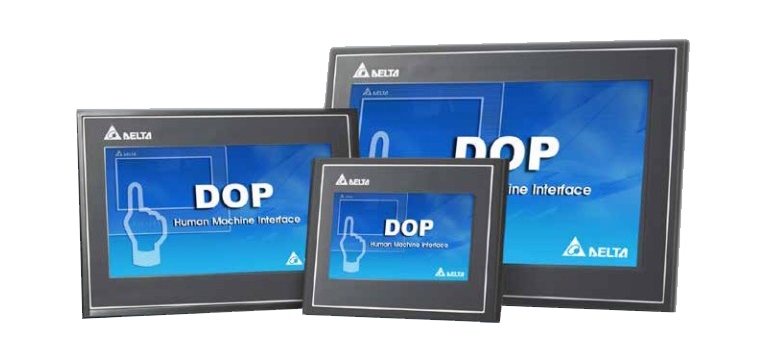

    Delta TOUCH PANEL HMI DOP - 100 / DOP - w
  • TFT Colors 65536
  • Support 21 CFR Part 11 complains
  • USB Host for direct connection to USB disk, printer,mouse and keyboard
  • Support audio output: MP3, WAV files
  • Support Ethernet, Zoom in / Out Display,
  • Multi-language Input & Web Monitoring
  • Support SDHC card
  • Sizes : 4.3” to 15”
    		•  Delta’s Human Machine Interface DOP-100 Series adopts the latest Cortex-A8 high speed processor and 65,536 color LCD display panel with high brightness and contrast. The DOP-100 Series supports multiple network functions, including FTP, E-Mail, VNC (Virtual Network Computing) Remote Monitoring, and NTP (Network Time Protocols) to meet customer requirements for cloud applications and smart manufacturing

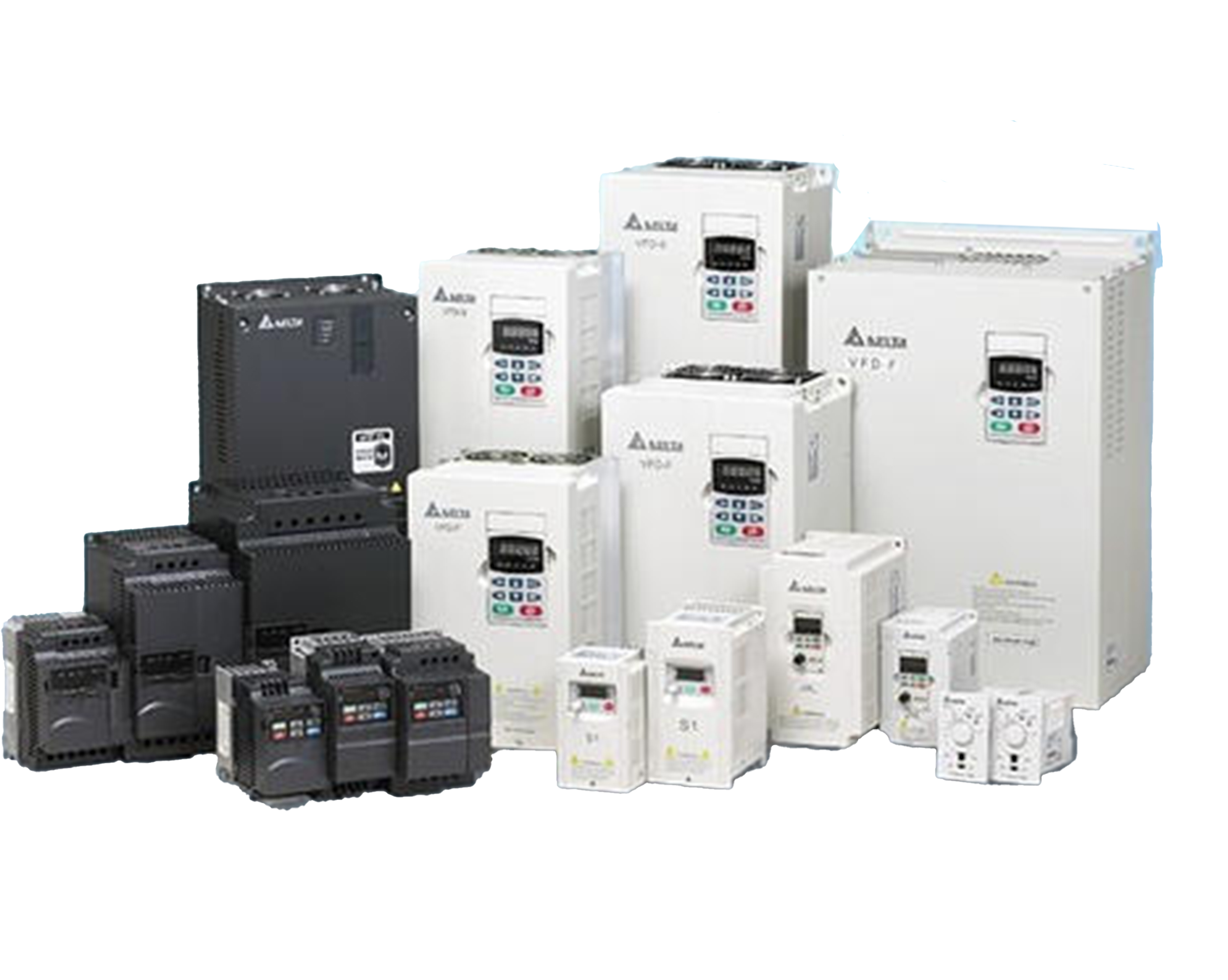

    VFD - Variable Frequency drive

    Image Model Specification Application DataSheet
    Delta Delta AC Drive
    1. Motor Power (kW) - 3.7 kW - 75 kW
    2. Brand - DELTA
    3. IP Rating - IP52
    4. Condition - New
    5. Motor RPM - 1440 RPM, 2880 RPM, 960 RPM
    6. Input Phase - Single & Three Phase Both
    7. Output Phase - Three Phase
    8. Voltage - 415 V
    9. Warranty - 1 Year
    		 Withstand high pressure Excellent tensile strength Simple operation

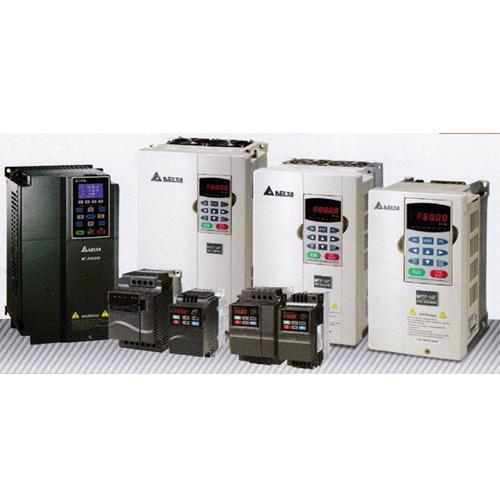

    Delta DELTA Variable Frequency Drive
    1. Motor Power (kW) - 3.7 kW - 75 kW
    2. Brand - DELTA
    3. IP Rating - IP52
    4. Condition - New
    5. Motor RPM - 960 RPM, 2880 RPM, 1440 RPM
    6. Input Phase - Single & Three Phase Both
    7. Output Phase - Three Phase
    8. Warranty - 1 Year
    		 Corrosion resistance Simple operation Noiseless functioning
    Delta Delta Adjustable Frequency Drive
    1. Brand - DELTA
    2. Motor Power (kW) - 3.7 KW - 75 KW
    3. Input Phase - Single Phase & Three Phase
    4. Output Phase - Three Phase
    5. IP Rating - IP52
    6. Input Frequency - 50 Hz - 60 Hz
    7. Warranty - 1 Year
    8. Condition - New
    Delta Delta VE Series VFD
    1. Motor Power (kW) - 3.7 - 75 kW
    2. Brand - DELTA
    3. IP Rating - IP52
    4. Condition - New
    5. Motor RPM - 960 RPM, 1440 RPM, 2880 RPM
    6. Input Phase - Single & Three Phase Both
    7. Model Series - VE Series
    8. Warranty - 1 Year
    Delta Delta M-Series VFD
    1. Motor Power (kW) - 3.7 kW - 75 kW
    2. Brand - DELTA
    3. IP Rating - IP52
    4. Condition - New
    5. Motor RPM - 2880 RPM, 1440 RPM, 960 RPM
    6. Input Phase - Single & Three Phase Both
    7. Model Series - M-Series
    8. Warranty - 1 Year

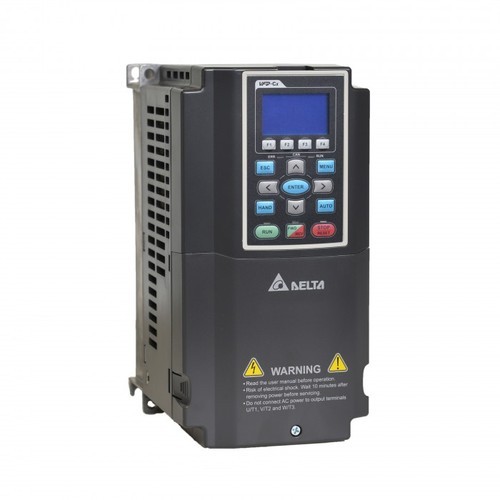

    Delta Delta MD Drives Variable Frequency Drive
    1. Motor Power (kW) - 3.7 kW - 75 kW
    2. Brand - DELTA
    3. IP Rating - IP52
    4. Condition - New
    5. Motor RPM - 1440 RPM, 2880 RPM, 960 RPM
    6. Input Phase - Single & Three Phase Both
    7. Output Phase - Three Phase
    8. Warranty - 1 Year

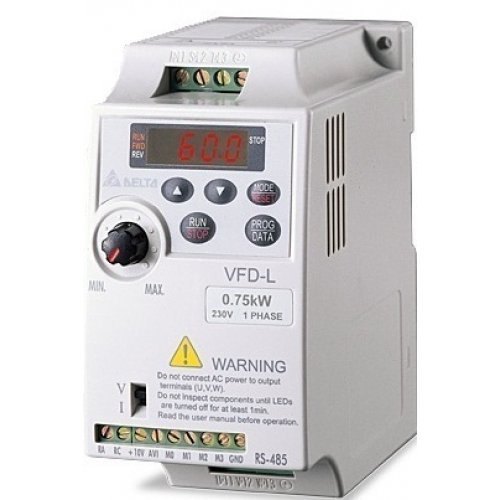

    Delta Delta L-Series VFD
    1. Motor Power (kW) - 3.7 kW - 75 kW
    2. Brand - DELTA
    3. IP Rating - IP52
    4. Condition - New
    5. Motor RPM - 1440 RPM, 960 RPM, 2880 RPM
    6. Input Phase - Single & Three Phase Both
    7. Output Phase - Three Phase
    8. Model Series - L-Series
    9. Warranty - 1 Year
    Delta Delta EL-Series VFD
    1. Motor Power (kW) - 3.7 kW - 75 kW
    2. Brand - DELTA
    3. IP Rating - IP52
    4. Condition - New
    5. Motor RPM - 2880 RPM, 960 RPM, 1440 RPM
    6. Input Phase - Single & Three Phase Both
    7. Output Phase - Three Phase
    8. Model Series - EL-Series
    9. Warranty - 1 Year

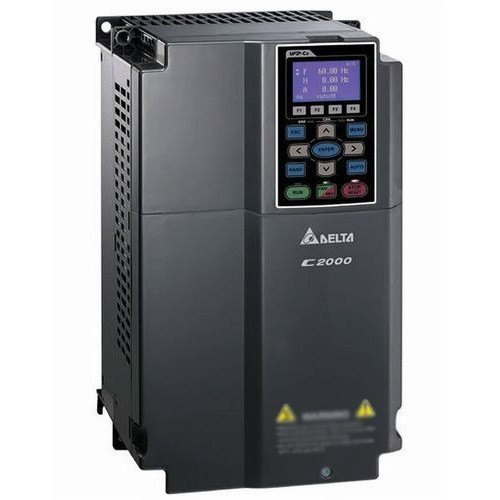

    Delta Delta C2000 Series VFD
    1. Motor Power (kW) - 3.7 - 75 kW
    2. Phase - Single Phase, Three Phase
    3. Brand - DELTA
    4. IP Rating - IP52
    5. Condition - New
    6. Motor RPM - 1440 RPM, 960 RPM, 2880 RPM
    7. Model Series - C2000
    8. Warranty - 1 Year
    Delta Delta VL Series VFD
    1. Motor Power (kW) - 3.7 KW to 75 KW
    2. Brand - DELTA
    3. IP Rating - IP52
    4. Condition - New
    5. Input Phase - Single Phase & Three Phase
    6. Output Phase - Three Phase
    7. Input Frequency - 50 Hz - 60 Hz
    8. Warranty - 1 Year
    9. Input Voltage - 415 V

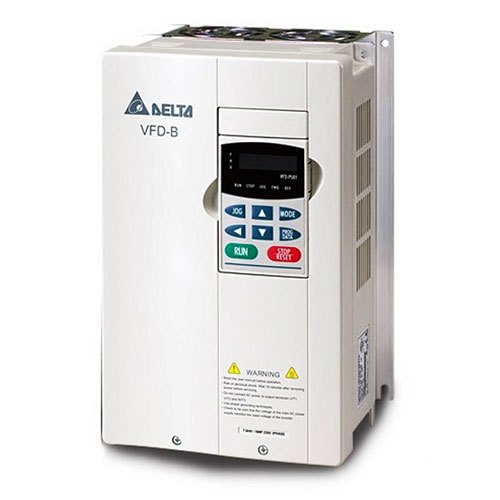

    Delta Delta B Series VFD
    1. Motor Power (kW) - 3.7 KW to 75 KW
    2. Brand - DELTA
    3. IP Rating - IP52
    4. Condition - New
    5. Input Phase - Single Phase & Three Phase
    6. Output Phase - Three Phase
    7. Input Frequency - 50 Hz - 60 Hz
    8. Warranty - 1 Year
    9. Input Voltage - 415 V

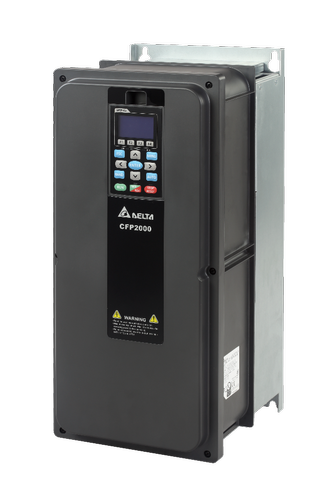

    Delta Delta CP2000 Series VFD
    1. Motor Power (kW) - 3.7 KW - 75 KW
    2. Brand - DELTA
    3. IP Rating - IP52
    4. Condition - New
    5. Input Phase - Single Phase & Three Phase
    6. Output Phase - Three Phase
    7. Input Frequency - 50 Hz - 60 Hz
    8. Warranty - 1 Year
    Delta Delta C200-Series VFD
    1. Motor Power (kW) - 3.7 KW to 75 KW
    2. Brand - DELTA
    3. Phase - Three Phase, Single Phase
    4. IP Rating - IP52
    5. Condition - New
    6. Input Phase - Single Phase & Three Phase
    7. Output Phase - Three Phase
    8. Input Frequency - 50 Hz - 60 Hz
    9. Warranty - 1 Year
    10. Input Voltage - 415 V
    		 @twitter
    Delta Delta E-Series VFD
    1. Brand - DELTA
    2. Phase - Single Phase, Three Phase
    3. Motor Power (kW) - 3.7 KW to 75 KW
    4. Output Phase - Three Phase
    5. Input Phase - Single Phase & Three Phase
    6. IP Rating - IP52
    7. Input Frequency - 50 Hz - 60 Hz
    8. Warranty - 1 Year
    9. Condition - New

    Servo

    Image Model Specification Application DataSheet

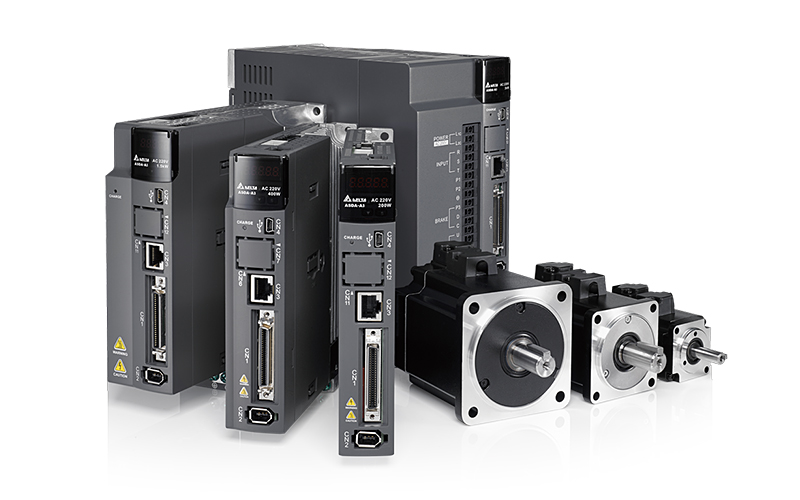

    Delta AC SERVO SYSTEM ASDA – A3
  • Advanced motion control functions
  • 24-bit absolute type encoders
  • Built in 3 Control modes (Speed, Position & Torque)
  • Compact Size Design
    		• Machine tool, precise carving machine, gantry processing, TFT LCD cutting machine, IC packaging machine, assembly / inspection machine for electronics, industrial robot, packaging machine, labeling machine, semiconductor machine, textile machine

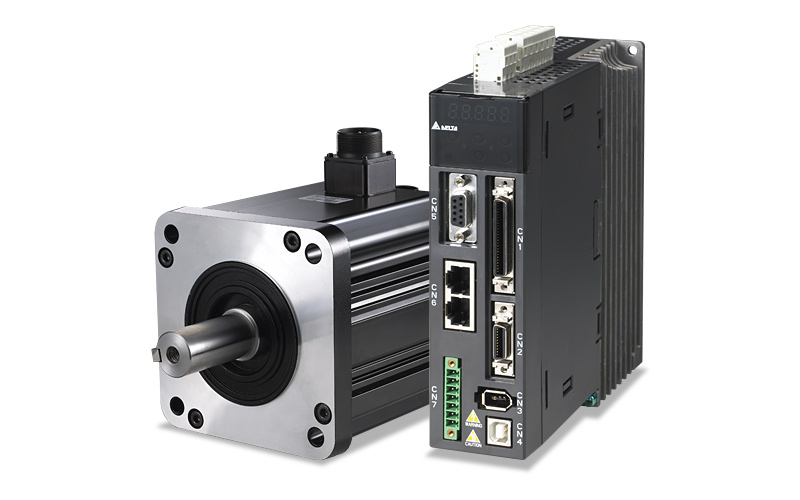

    Delta Advance Servo Drive for High-end Motion System ASDA - A2 / B2 / B2L
  • High Positioning Accuracy
  • High Responsiveness
  • Excellent Suppression Functions
  • Full-closed Control Function
  • Electronic Cam (E-Cam) Function
  • Versatile PR Mode
  • Capture and Compare Functions
  • Support High Speed DMCNET. EtherCAT,
  • CANopen Protocols for Multi-Axis Synchronous Control
  • Rating : 100 w to 7.5 kw
    		•  Precise carving machine, precise lathe/milling machine, double column type machining center, TFT LCD cutting machine, robot arm, IC packaging machine, high-speed packaging machine, CNC processing equipment, injection processing equipment, label inserting machine, food packaging machine, printing

    Servo Drive

    Image Model Specification Application DataSheet

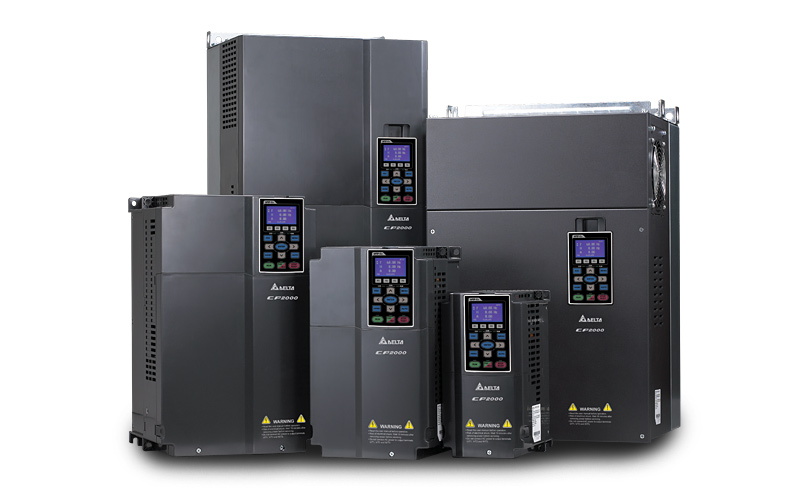

    Delta Delta AC DRIVE
  • Field oriented control with built-in PLC function
  • Wide variety of applications
  • Wide range of models to meet requirements
  • Modular design for easy maintenance and many extensions
  • High Speed communication interface with built-in CAN open and MODBUS communication (Optional cards for PROFIBUS-DP, Device Net, MODBUS TCP and Ethernet / IP)
  • Long-life design and life detection of important components
  • Enhanced protections and adaptation to ambient conditions
  • Rating : 1 ᶲ : 220v - 100w - 3.7 kw 4 : 415v - 0.37 kw - 350 kw
    		•

    Delta Temperature Controller

    Image Model Specification Application DataSheet

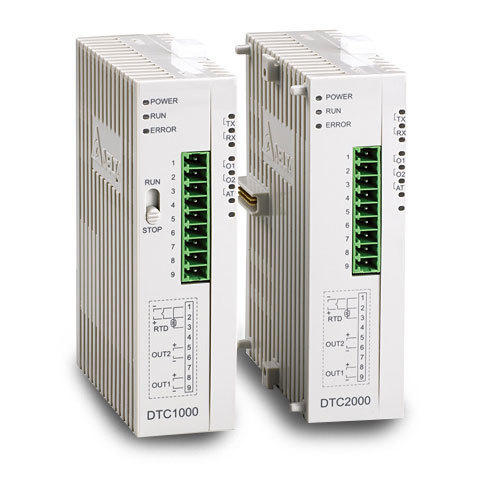

    Delta Delta Delta Temperature Controller
  • PID / On-Off / manual input / programmable contrl modes
  • 2 groups of outputs to auto-tuning 2-groups of PID parameters
  • Able to connect to various thermocouples (B,E,J,K,L,N,R,S, T,U,TXK),platinum RTD (PT100,JPT100), analog current (0 ~ 20mA, 4 ~ 20mA) and linear voltage (0 ~ 5v, 0 ~ 10v)
  • Maximum 3 groups of alarm switches are available, with 18 alarm modes each
  • Celsius or Fahrenheit temprature display
  • Panel sizes: 48 × 24, 48 × 48, 48 × 96, 96 × 96 built-in RS-485 communication interface (Modbus ASCII, RTU, baud rate: 2,400 ~ 38,400)
    		• Delta's DT series temperature controller has fast output response, accurate PID parameter auto-tuning, supports the Modbus communication protocol and is built-in with various output types, allowing different systems to reach a stable control status very quickly.

    CNC

    Image Model Specification Application DataSheet

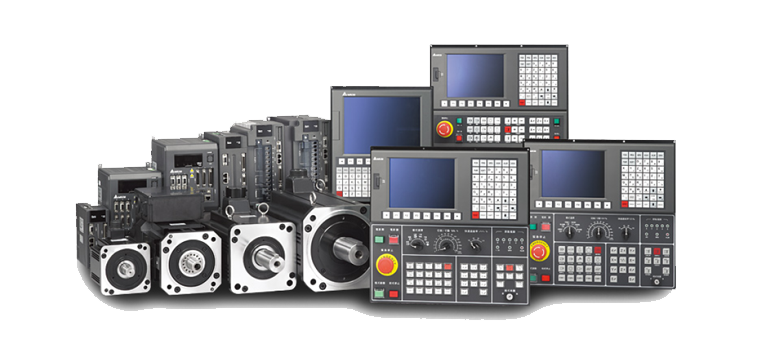

    Delta CNC
  • Features a built-in, 32-bit high speed and high processing dual CPU that can construct a real time and multi functional control centre.
  • With the aid of Deltas high-speed servo and spindle systems, high quality digital data transmissiom can be achieved and noise suppression in enhanced
  • CNC Machining centers, High Speed Tapping Machines
  • Engraving Machines
  • CNC Gantry Control Machines
  • CNC Woodworking Machines
    		•

    Delta Industrial PC and SCADA System

    Image Model Specification Application DataSheet
    Delta Delta Delta Industrial PC and SCADA System
  • 15” and 19” TFT LCD touch screen
  • Fanless and low power Intel Core i3 / i5 processor with hig efficiency and excellent performance
  • High and low temprature resistant, dust and waterproof, suitable for harsh industrial environment applications
  • Fully compatible with SCADA and IMES software platform providing open interface for easy integration
  • Seamless integration with Delata PLC products and I/O modules, supporting various industrial communication protocols and equipment drivers
  • Flexible variables dictionary and batch editing parameters
  • A variety of data visualization tools: reports, alarms, charts, and trend graphs
  • Diversified real-time and historical data analysis tools
    		•

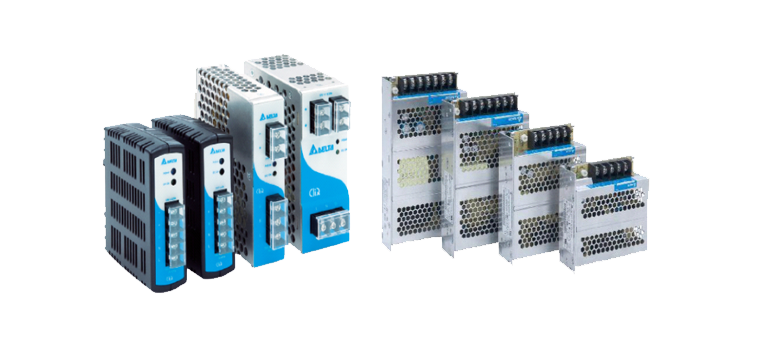

    Delta SMPS

    Image Model Specification Application Datasheet
    Delta Delta SMPS
  • DIN Rail & Panel Mount models available
  • OUTPUT VOLTAGE: 5V,12V,24V,48V DC
  • 12V Upto 100W, 24V upto 960W, 48V upto 480W
  • Open Frame models also available
    		•

    Robots

    Image Model Specification Application DataSheet

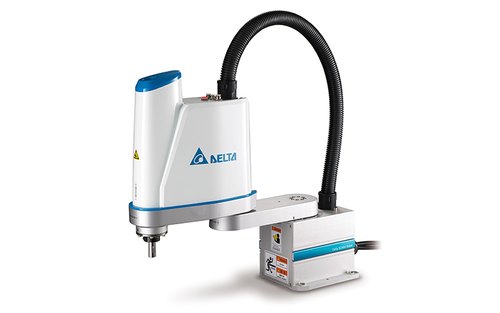

    Delta DELTA ROBOT DRS40L3
  • Number of Axes - 4
  • Arm length - 400mm
  • Maximum Payload -1kg
  • Standard cycle time - 0.42sec
  • Weight - 16kg
  • Maximum Push force - 100/250N
    		•  Industries: Consumer electronics, electrical and electronics, rubber and plastics, packaging, metal fabrication and others Applications: Insertion, screw driving, assembly, glue-dispensing, soldering, load and unload, stacking, and inspection

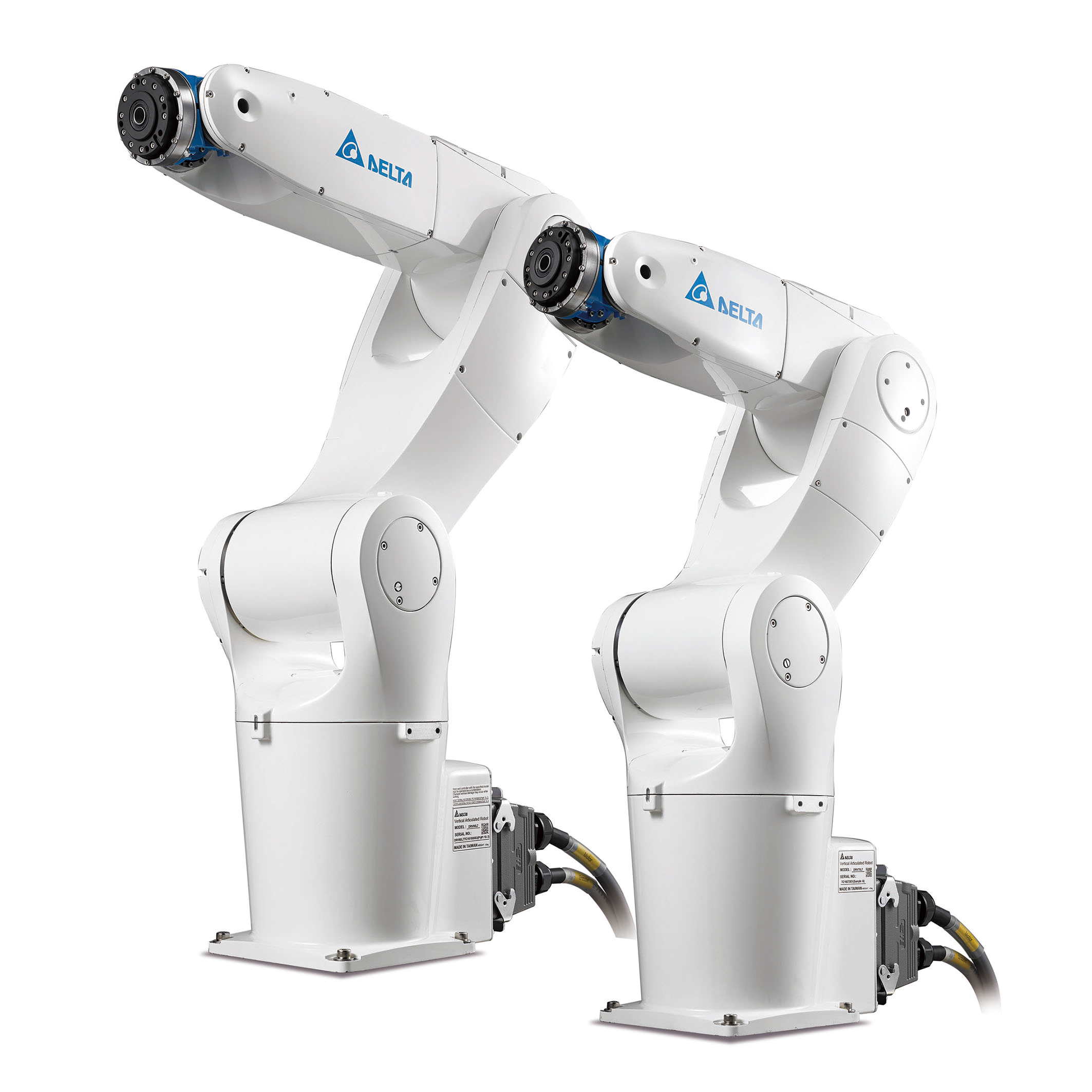

    Delta ARTICULATE ROBOT DRV70L
  • Maximum working range - 710 mm
  • Maximum Payload - 7 kg
  • Standard Cycle time - 0.31 sec
  • IP rating - IP40
  • Humidity - 20~85 % RH
  • Vibration - 0.5G
    		•  High Speed , Precision . Hollow design of the robot wrist and tool placement Slim and compact body design , Soldering , Insertion , Assembly , Palletizing and so on .
    Delta ARTICULATE ROBOT DRV90L
  • Maximum working range - 900mm
  • Maximum Payload - 7 kg
  • Standard cycle time - 0.34sec
  • IP rating - IP40
  • Humidity - 20~85% RH
  • Vibration - 0.5G
    		•  High Precision and Speed , Hollow design of the robot wrist for wiring and tool placement. Matches with Delta key devices for quick maintenance and integration and soldering , Insertion and material feeding.
    Delta SCARA ROBOT DRS50L6 Series
  • Number of axes - 4
  • Arm Length - 500mm
  • Maximu payload - 2kg / 6kg
  • Standard cycle time - 0.39sec
  • Maximum push force - 150N / 350N
  • Weight - 18.5kg
    		•  Sensor-less compliance control function Multiple teaching methods and direct teaching High speed and repeatability, excellent linearity and verticality
    Delta SCARA ROBOT DRS60L6 Series
  • Number of axes - 4
  • Arm length - 600mm
  • Maximum Payload - 2kg / 6kg
  • Range of motion - 200mm
  • Standard cycle time - 0.39sec
  • Maximum push force - 150N / 350N
  • Weight - 20kg
    		•  Sensor-less compliance control function Multiple teaching methods and direct teaching High speed and repeatability, excellent linearity and verticality
    Delta SCARA ROBOT DRS70L6
  • Number of axes - 4
  • Arm length - 700mm
  • Maximum speed - 5500 mm/sec
  • Standard cycle time - 0.40sec
  • Weight - 20kg
  • Humidity - 0~90%RH (non-condensing)
    		•  Industries: Consumer electronics, electrical and electronics, rubber and plastics, packaging, metal fabrication and others Applications: Insertion, screw driving, assembly, glue-dispensing, soldering, load and unload, stacking, and inspection
    Delta SCARA ROBOT DRS60H6 Series
  • Number of axes - 4
  • Installation - Ceiling mounted
  • Arm length - 600mm
  • Maximum Push force - 150N/350N
  • Weight - 23kg
    		•  Sensor-less compliance control function Multiple teaching methods and direct teaching High speed and repeatability, excellent linearity and verticality Industries: Consumer electronics, electrical and electronics, rubber and plastics, packaging, metal fabrication and others Applications: Insertion, screw driving, assembly, glue-dispensing, soldering, load and unload, stacking, and inspection
    Delta SCARA ROBOT DRS60/70/80LC Series
  • Number of axes - 4
  • Maximum payload - 5kg / 12kg
  • Standard cycle time - 0.43sec
  • Weight - 42kg
  • Allowable Inertia moment - 0.02kg-m^2
    		•  Industries: Consumer electronics, electrical and electronics, rubber and plastics, packaging, metal fabrication and others Applications: Insertion, screw driving, assembly, glue-dispensing, soldering, load and unload, stacking, and inspection
